工艺参数对切向超声辅助磨削钛合金表面质量的影响

王岩; 冷和鹏; 朱贵升; 朱绪胜; 董颖怀; 付志强

doi:10.19287/j.mtmt.1005-2402.2023.09.027

工艺参数对切向超声辅助磨削钛合金表面质量的影响

doi: 10.19287/j.mtmt.1005-2402.2023.09.027

王岩^{1, 2,},
冷和鹏¹,
朱贵升¹,
朱绪胜³,
董颖怀^{1, 2, ,},
付志强¹

1.
天津科技大学机械工程学院, 天津 300222
2.
天津市轻工与食品工程机械装备集成设计与在线监控重点实验室, 天津 300222
3.
中航工业成都飞机工业（集团）有限责任公司, 四川成都610091

基金项目: 天津市自然科学基金项目（18JCQNJC05200）；天津市教委科研计划项目（2018KJ116）；天津市自然科学基金项目（18JCYBJC88900）；天津市自然科学基金青年项目（18JCQNJC75300）

详细信息

作者简介:
王岩，男，1985年生，副教授，研究方向为精密与特种加工技术。E-mail: yanwang@tust.edu.cn

通讯作者:
董颖怀，男，1980年生，讲师，研究方向为特种加工与超精密加工。E-mail：dongyh@tust.edu.cn

中图分类号: TG580.1
计量
- 文章访问数: 62
- HTML全文浏览量: 18
- PDF下载量: 11
- 被引次数: 0
出版历程
- 收稿日期: 2023-01-22
- 录用日期: 2023-05-10

Experimental study on surface quality of titanium alloy by tangential ultrasonic assisted grinding

1.
College of Mechanical Engineering, Tianjin University of Science and Technology, Tianjin 300222, CHN
2.
Tianjin Key Laboratory of Integrated Design and Online Monitoring of Light Industry and Food Engineering Machinery and Equipment, Tianjin 300222, CHN
3.
AVIC Chengdu Aircraft Industial (Group) Co., Ltd., Chengdu 610091, CHN

摘要

摘要: 针对磨削加工过程中磨削温度高、表面质量差以及砂轮使用寿命低等问题，从运动学和切削力两方面分析了切向超声辅助磨削加工机理。以Ti6Al4V为工件材料，通过对比实验研究了超声振幅、磨削深度、进给速度与主轴转速对材料表面粗糙度的影响。实验结果表明：与单一磨削加工相比，引入超声振动后材料表面粗糙度Ra降低25%～40%，材料表面凹坑明显减少，表面形貌发生显著变化。随着振幅的升高材料表面粗糙度减小，最大降幅为40%；粗糙度随着转速的升高而降低，降低幅度为25%。证明了超声振动的引入可以减小粗糙度，提高磨削加工工件的表面质量。研究结果为磨削加工中参数的选择提供指导意义。
- 切向超声振动 /
- 磨削力 /
- 表面粗糙度 /
- 磨削参数
Abstract: Aiming at the problems of high grinding temperature, poor surface quality and low service life of grinding wheel in grinding process, this paper analyzed the mechanism of tangential ultrasonic assisted grinding from two aspects of kinematics and cutting force. Taking Ti6Al4V as workpiece material, the influences of ultrasonic amplitude, grinding depth, feed speed and spindle speed on material surface roughness were studied through comparative experiments. The experimental results show that, compared with the single grinding process, the surface roughness Ra is reduced by 25%～40% after the introduction of ultrasonic vibration, the surface pits are reduced significantly, and the surface topography changes significantly. With the increase of amplitude, the surface roughness of the material decreases by 40%. The roughness decreases with the increase of rotational speed by 25%. It is proved that the introduction of ultrasonic vibration can reduce the roughness and improve the surface quality of grinding workpiece. The results provide guidance for the selection of grinding parameters.
- tangential ultrasonic vibration /
- grinding force /
- surface roughness /
- grinding parameters

HTML全文

图 1 切向超声辅助磨削的运动模型

下载: 全尺寸图片幻灯片

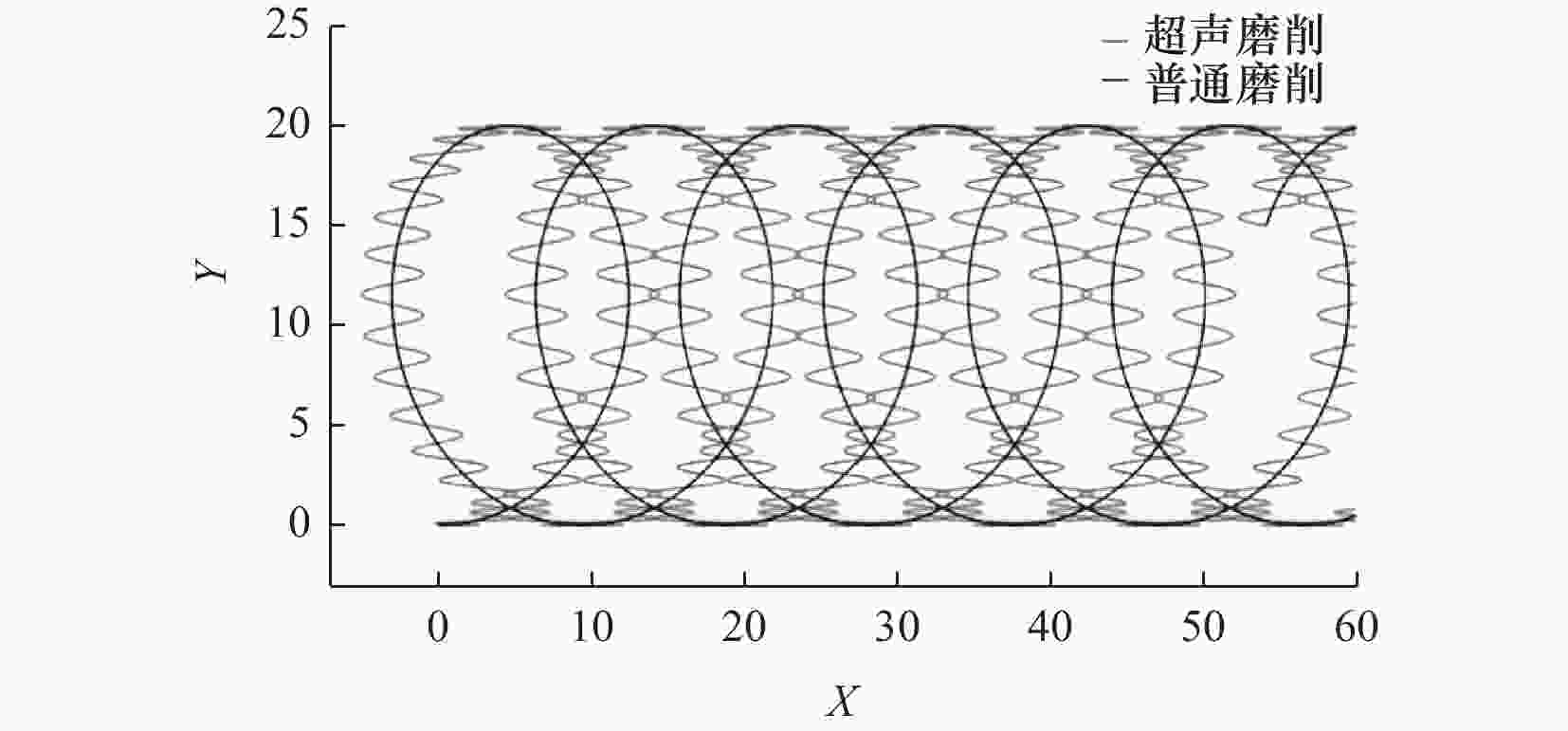

图 2 单颗磨粒的运动轨迹

下载: 全尺寸图片幻灯片

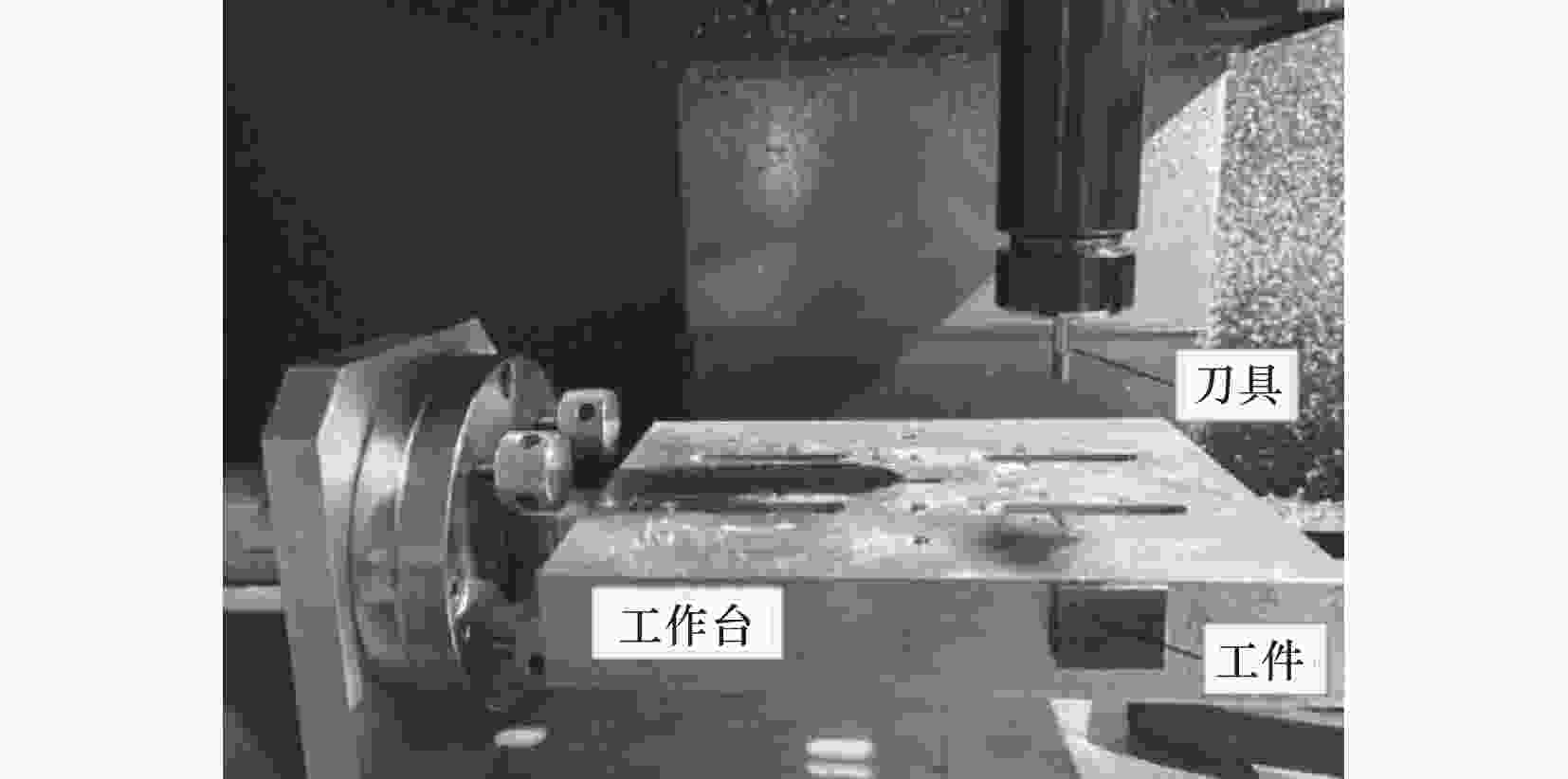

图 3 试验装置搭建图

下载: 全尺寸图片幻灯片

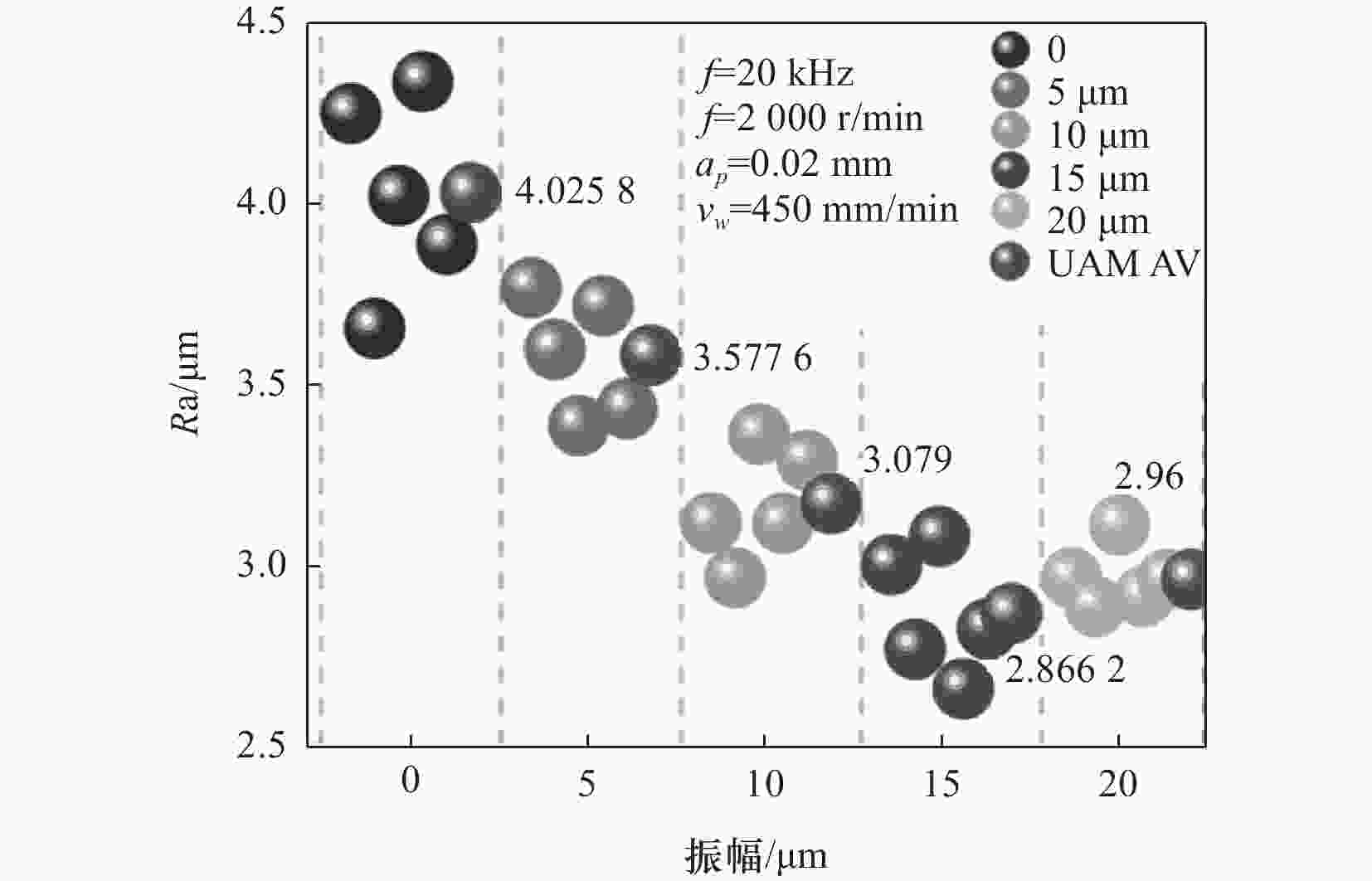

图 4 振幅对粗糙度的影响

下载: 全尺寸图片幻灯片

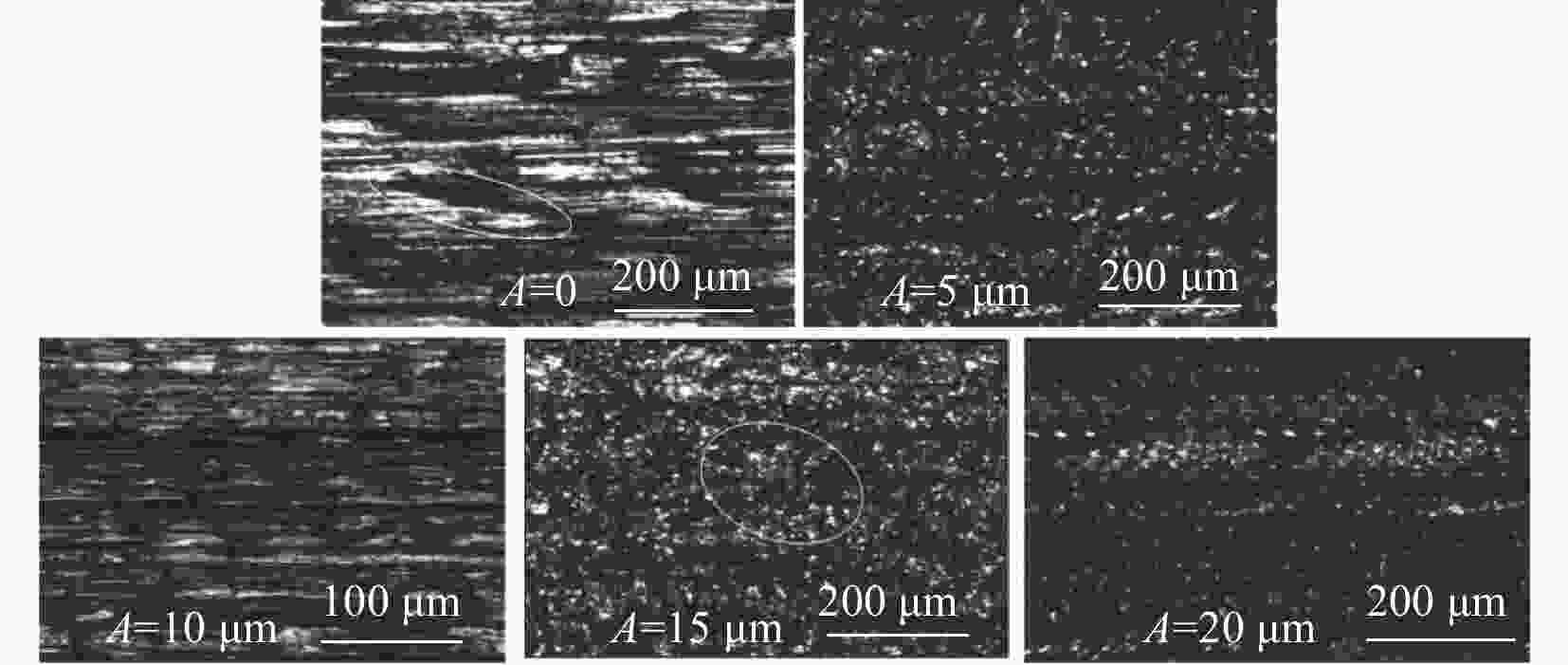

图 5 不同振幅下加工表面微观形貌图

下载: 全尺寸图片幻灯片

图 6 磨削深度对粗糙度影响

下载: 全尺寸图片幻灯片

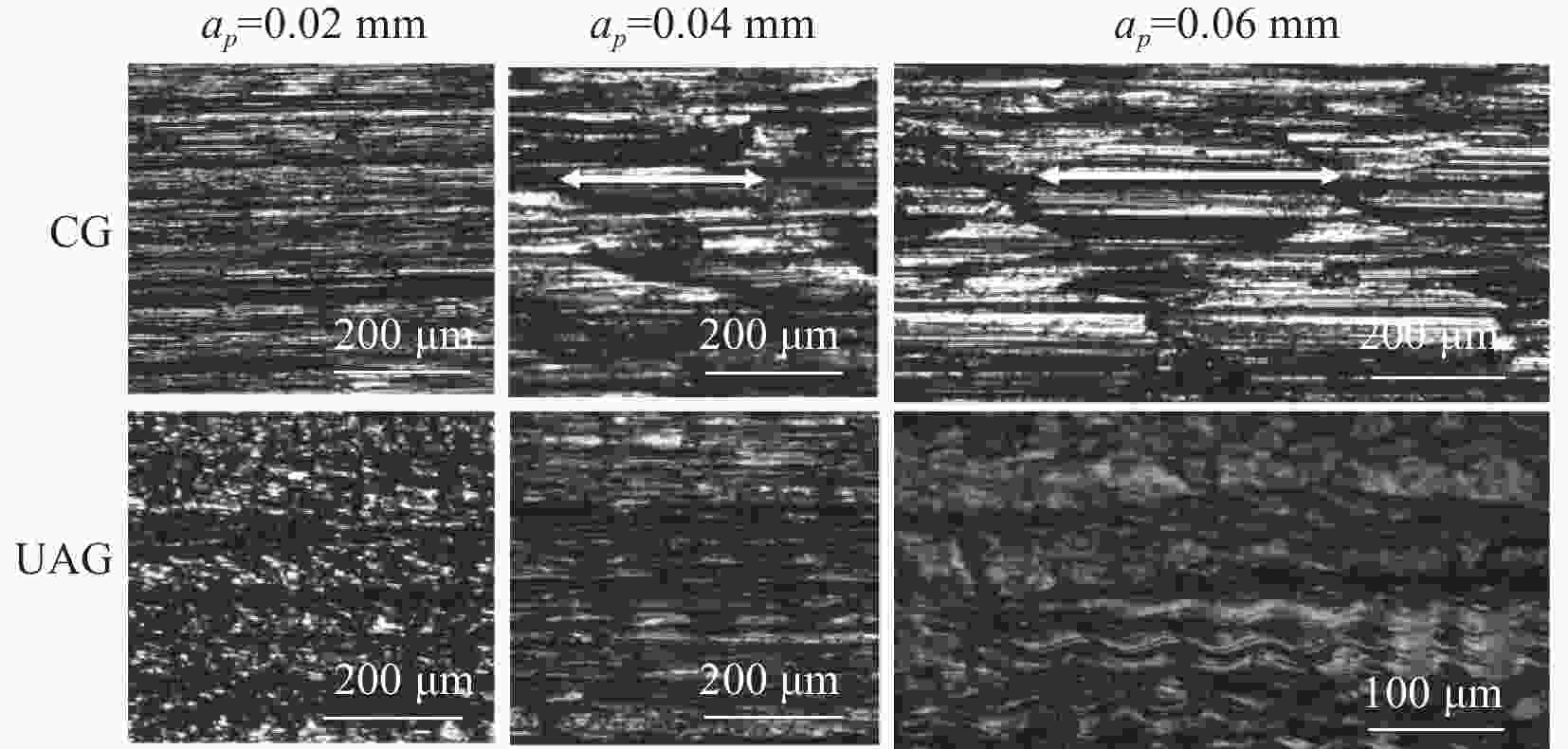

图 7 磨削深度变化对粗糙度影响

下载: 全尺寸图片幻灯片

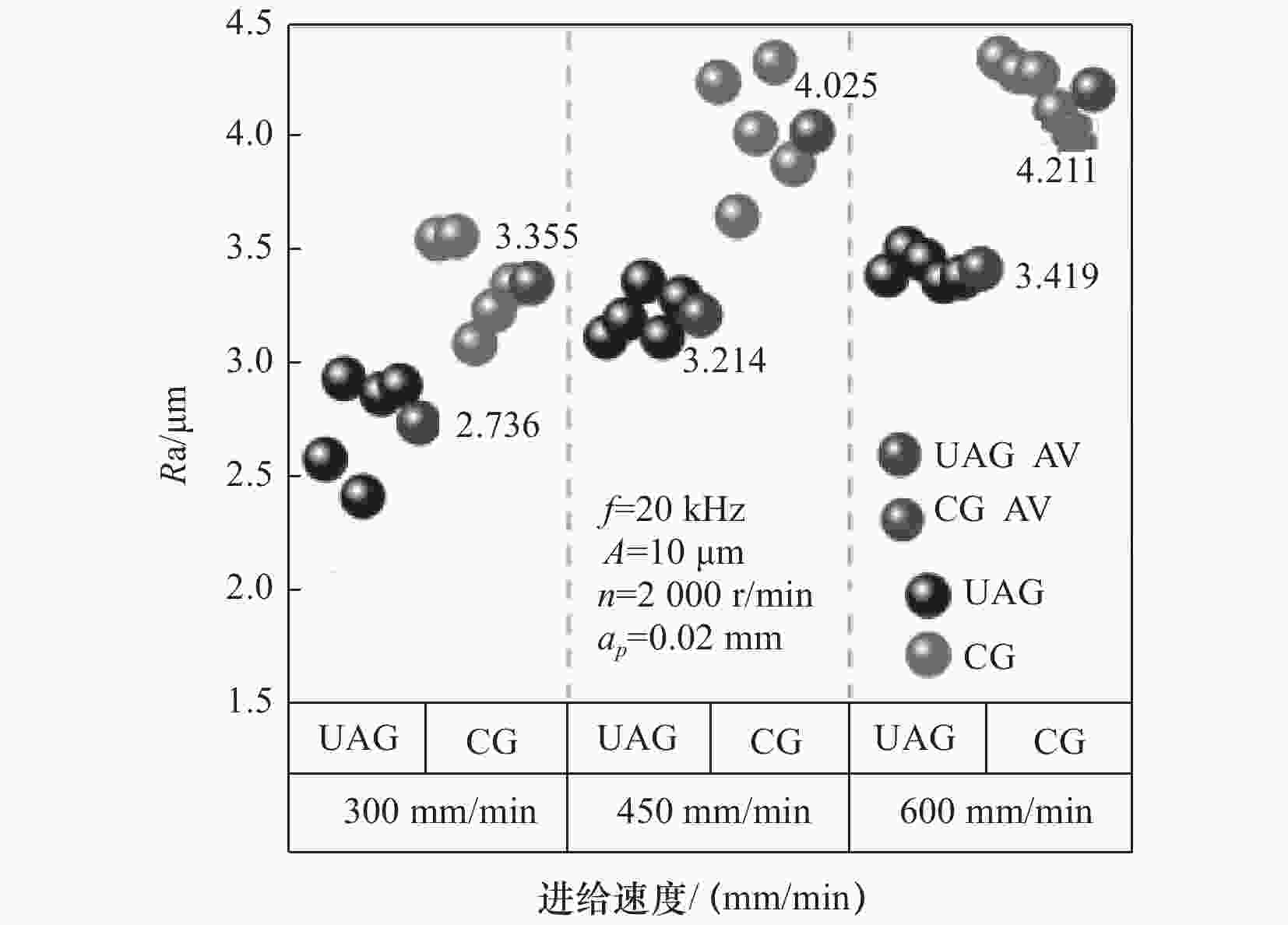

图 8 进给速度对粗糙度的影响

下载: 全尺寸图片幻灯片

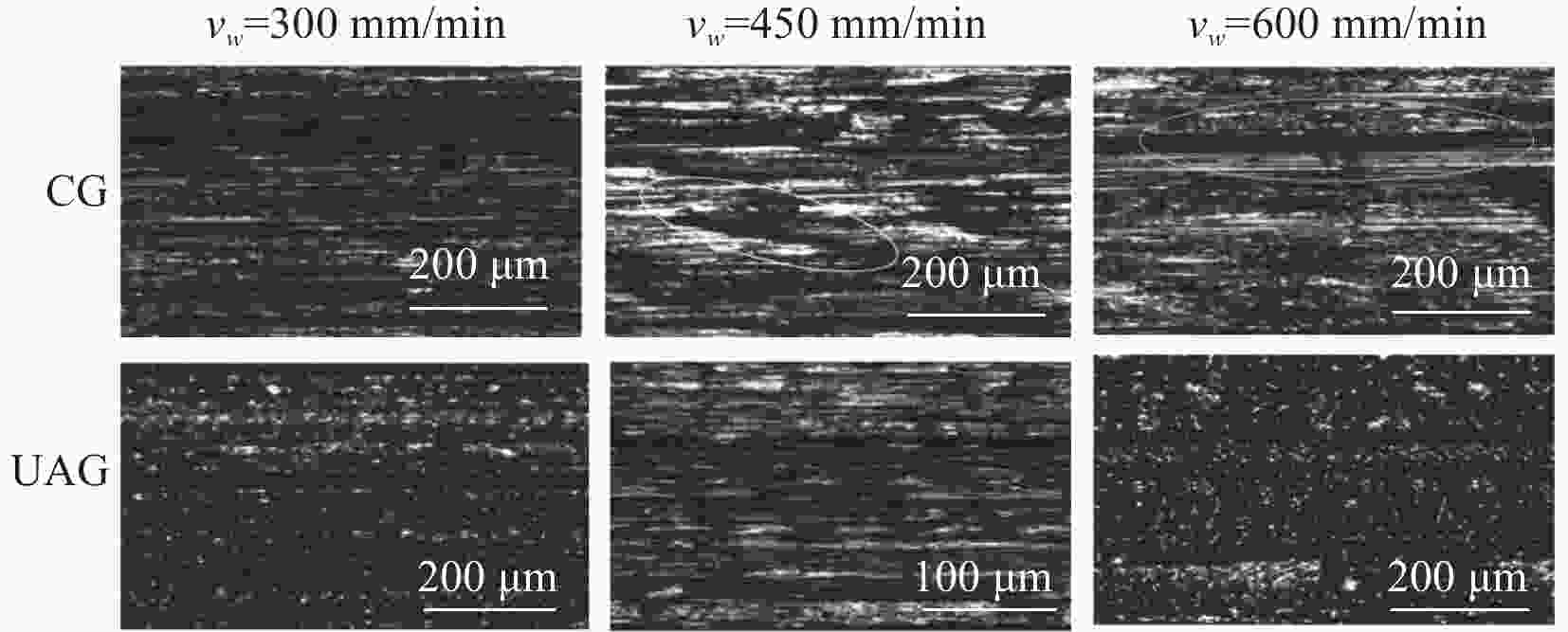

图 9 不同进给速度加工的表面微观形貌对比

下载: 全尺寸图片幻灯片

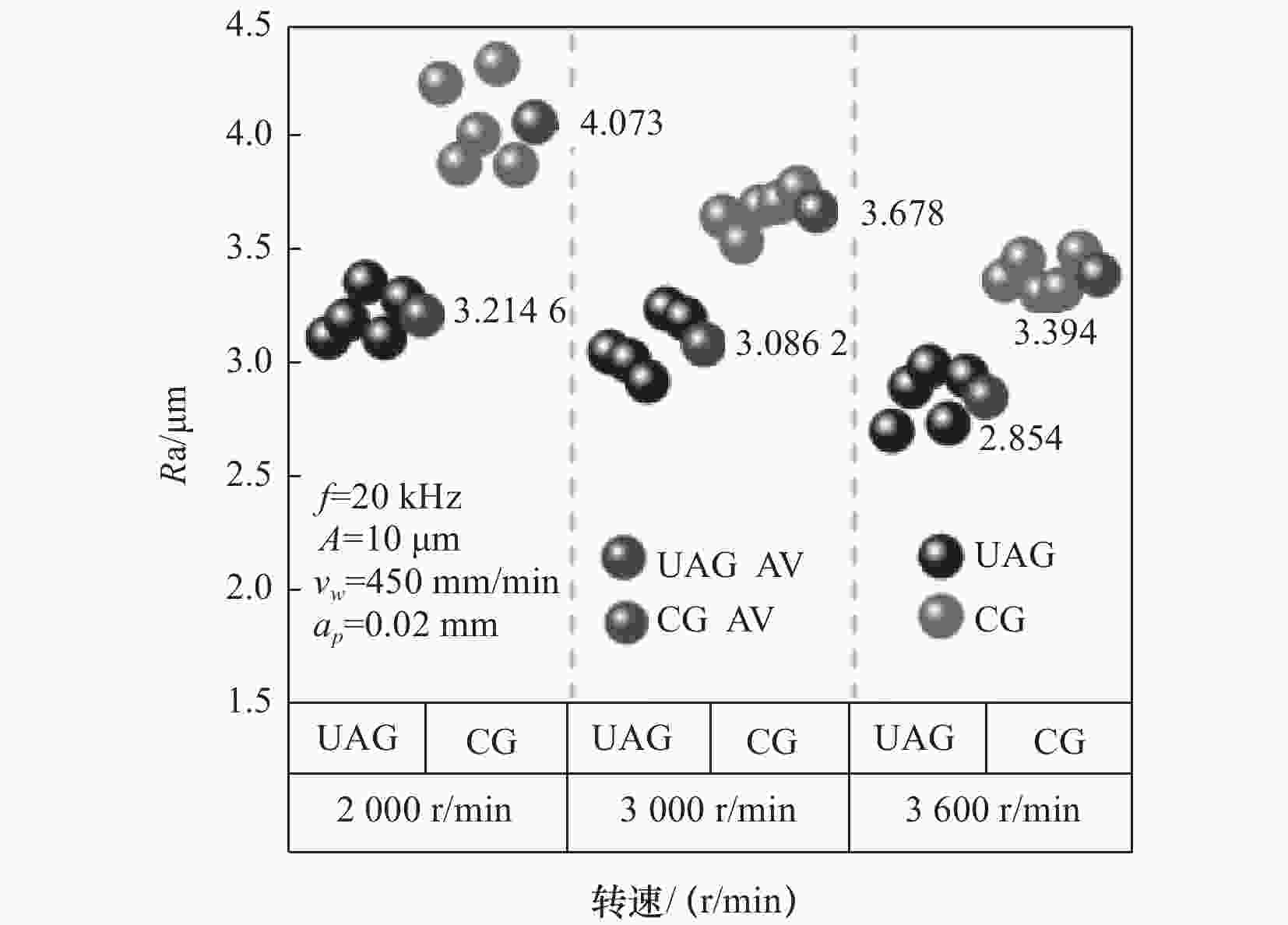

图 10 转速对粗糙度的影响

下载: 全尺寸图片幻灯片

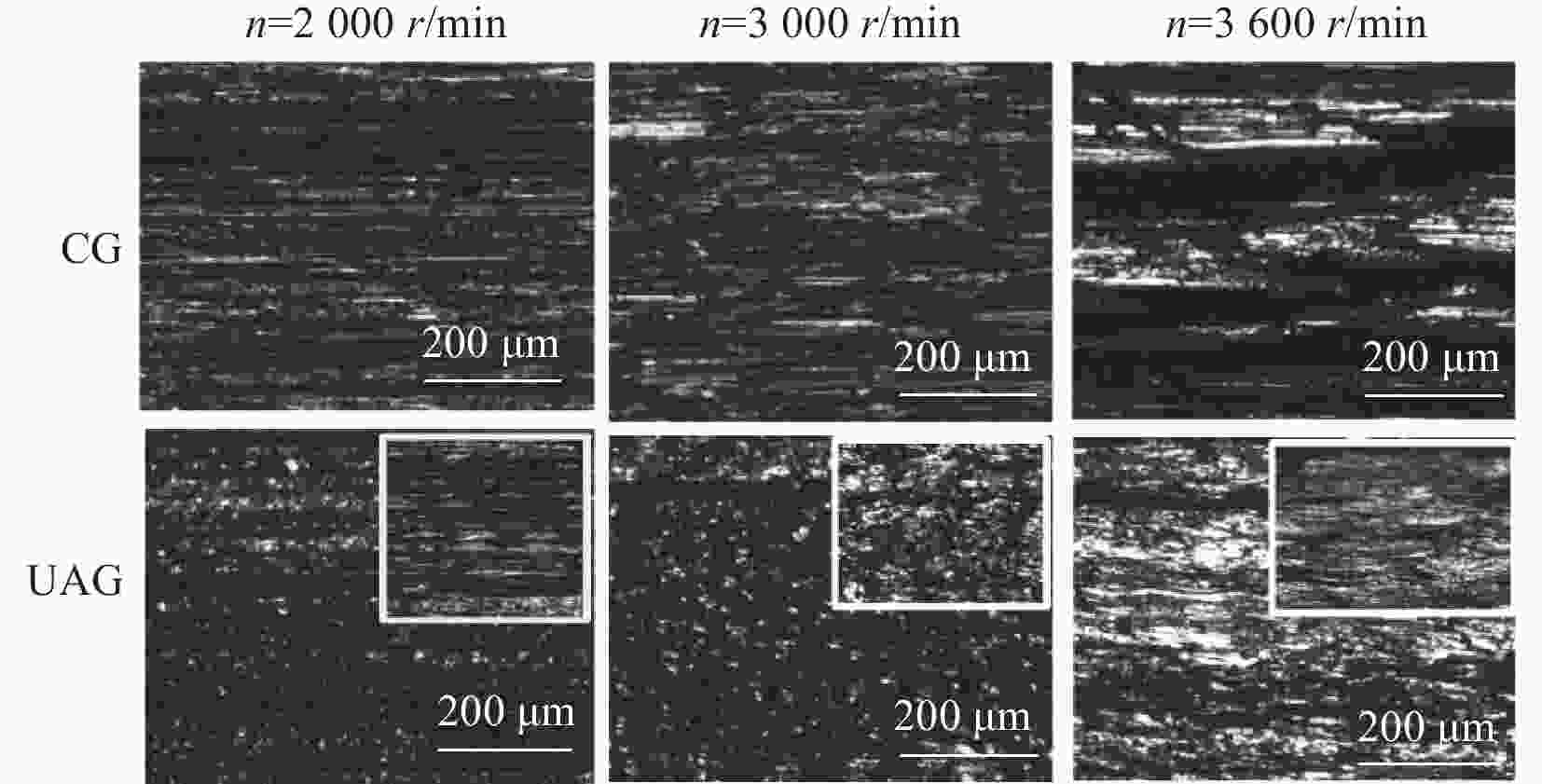

图 11 转速对微观表面形貌影响

下载: 全尺寸图片幻灯片
